Epoxy Joint Filler
Epoxy Joint Filler for Saw Cut Expansion Joints
100% Solids Zero (0) VOC Epoxy Resin
Epoxy.com Product #11

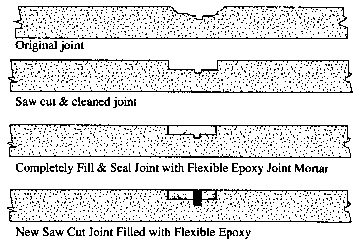

Epoxy Joint Filler for Saw-Cut Control Joints Product #11 is a 100% solids
zero (0) VOC, flexible epoxy joint filler
for saw-cut joints of concrete slabs on grade, or to repair existing slabs.
Epoxy.Saw-Cut Control Joint Filler Product #11 absorbs the impact and shock of heavy loads and steel wheeled traffic, preventing
erosion of control joint edges.
ADVANTAGES of EPOXY JOINT FILLER
- High elongation
- Flexibility provides for joint movement
- Protects slabs edges from chipping
- Cures on damp or wet surfaces
- Field proven reliability
- Good shock absorption qualities
- Zero (0) VOC so it meets even the strictest Low VOC standards
SURFACE PREPARATION EPOXY SAWCUT RESIN
Surface to receive Epoxy Joint Filler for Saw-Cut Control Joints Product
#11 must be clean and sound. Remove all dirt, laitance,
grease curing compounds and other foreign matter by sandblasting, or mechanical
abrasion. Remove water and dust from all surfaces with an oil-free blast immediately
prior to application.
MIXING INSTRUCTIONS EPOXY RESIN + HARDENER
Temperature of Epoxy Joint Filler for Saw-Cut Control Joints Product #11 must be 50 degrees F or above at
time of mixing. Stir each component separately before blending. Mix one part by weight of
Part A with one part by weight of Part B for three minutes with a low speed electric drill
motor equipped with a mixing paddle.
APPLICATION - EPOXY SAWCUT JOINT RESIN
For application on flat surfaces Epoxy Joint Filler for Saw-Cut Control
Joints Product #11 can be poured.
For vertical surfaces Epoxy Joint Filler for Saw-Cut Control Joints Product
#11can be thickened with Product #71. Contact
for more information on the thickening process. This mix of Epoxy Joint
Filler for Saw-Cut Control Joints Product #11 &
can be applied by power or hand operated caulking gun, by trowel, or with a putty knife,
or pumped from one of Epoxy.com' Binary Pumping Systems. In areas where cosmetics are
important mask both sides of the substrate before applying the material.
LIMITATIONS - EPOXY JOINT RESIN
Use of solvents for thinning will prevent proper cure.
Epoxy Joint Filler for Saw-Cut Control Joints Product #11 should not be installed on new concrete floors until maximum shrinkage has
occurred. Generally speaking, this time period is a minimum of 28 days.
Prolonged or repeated exposure may cause eye and
skin irritation. If contact occurs, wash immediately and seek medical help. Use safety
glasses with side shields and wear protective rubber gloves.
All tools and equipment should be cleaned before the
system gels. Use MEK, Acetone, or any lacquer solvent.
APPLICATION PROPERTIES @77°F
||1:1 By Weight
||8 Hours (80% strength)
|Packaging (unit size)
||1 gal., 5 gal.
||Light Gray, Dark Gray
|Shore A. Hardness
||70 to 80
|VOC Content (grams/liter)
(ASTM G23-75 Type D)
|10-15% elastomeric property
change after 1000 hours
|Bond Cohesion after Water Immersion
(Fed. Spec TT-S-00227E)
|No Failure after 25% total movement
|Tensile Strength (ASTM D-638)
|Ultimate Elongation (ASTM D-638)
|Tear Resistance (ASTM D-624-73)
||30 degrees F. to 180 ° F.
Chart is based on the
relationship between the 231 cubic inches in a US gallon and the dimensions of
the joint. Coverage is per gallon
|Chart is based on the relationship between the 231 cubic inches
in a US gallon. Coverage is in feet per gallon.|
||Width of Joint in Inches|
|Linear Feet Per Gallon
